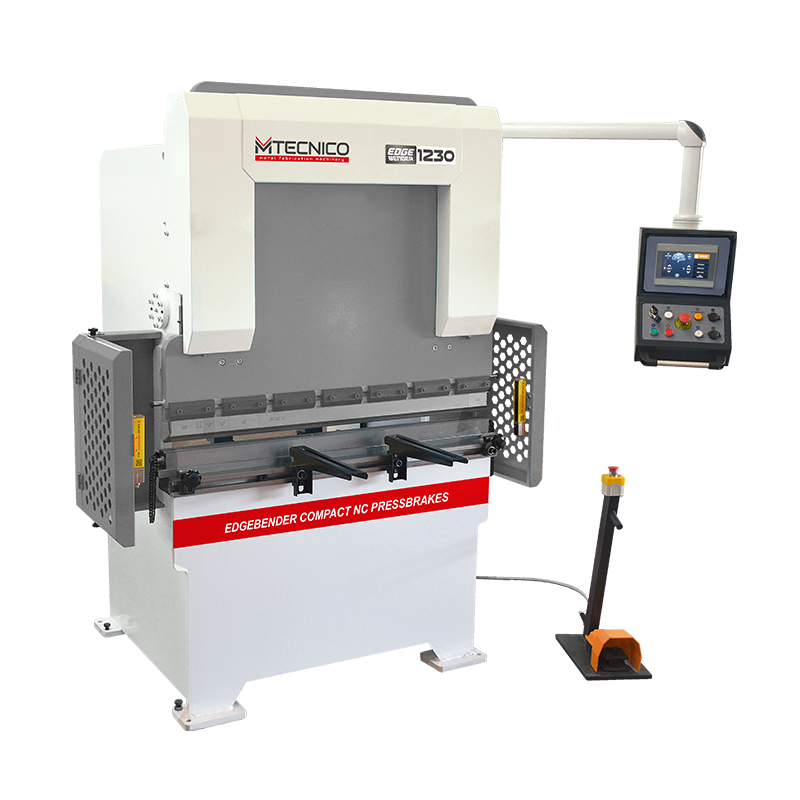

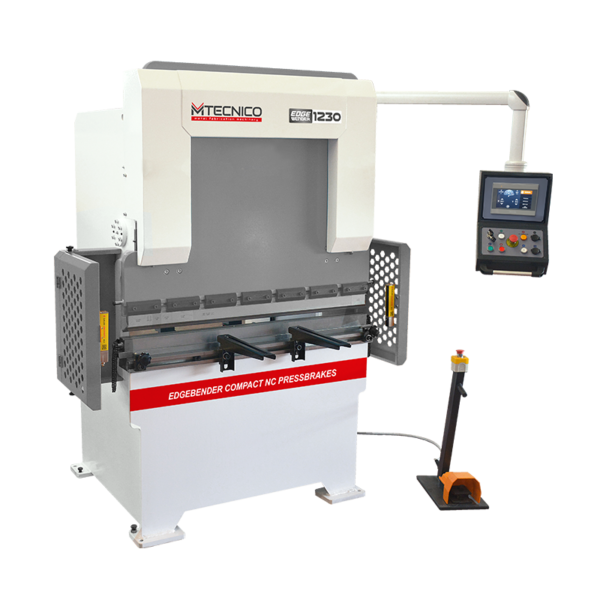

Welded Steel Frames Double Piston Upper Table Sensetive Motorized Angle Setup
- Bending system with Double Cylinder on the upper table.
- Static and dynamic rigidity provided, strong construction with steel frame and upper table material.
- Upper table movement supported by easily adjustable fiber slide bearings.
- Durable balancing spindle and eccentric bearings that aid parallelism.
- Stroke controlled angle adjustment mechanism with mechanical-stop system and motor control.
- High stroke and front opening values that facilitate the use of different bending molds.
- Easy tonnage adjustment with pressure switch and stop at lower stroke point via NC control.
- Hydraulic safety system against excessive pressure rise.
- Double speed working system: free fall, slow bend and fast return.
- Safety enabled foot pedal with emergency stop connected to the NC Controller, enables safe work environment and compatible with CE
- Compact, low maintenance needed HAWE or REXROTH hydraulic system unit located at the top of the machine.
- Service solution with remote connection with European origin SIEMENS and PIZZATO, BALLUF electrical equipments.
- LEUZE brand security system, in the front area enables different forms with learning mode.
- NC control unit, which can write standard 500 programs / 200 lines in each, And easy save and load programs from USB.
- Standard upper and lower molds.
- Motorized X back gauge with high speed and programmed via NC control supported with linear guideways: 600 mm gauge distance and 0.2 mm operating precision,
- Y AXIS Angle Setting by Motor and NC Controller available
- Quick-release PROMECAM upper Die clamping system for partial and quick disassembly. Manual crowning system which can be adjusted with the help of wedge from the upper die holders.
- Easily floating arm control panel.
- Front support arms that can be easily moved with linear slide and bearing systems.
- Tightening and fixing bolts to center the bottom die
- Sensetive prgrammable retreat function on Backgauge to avoid collision
